Blog Upgrades - Header Image color scheme

For the longest time I’ve been meaning to do a design overhaul on this blog but my life outside the workplace is either filled with more work or my zombifying completely in a universe of idiotic multitasking what passes for entertainment and not actually achieving anything - this is an actual issue I’ve been going through for a while now and I can acknowledge it in certain moments of clarity but I haven’t been able to fix it - #LifeHowDoesItWork. This means that the whole “REDESIGN ALL THE THINGS” pipe dream as surprisingly remained a dream but I can do the next best thing - VERY TINY INCREMENTAL IMPROVEMENTS AND/OR STUFF THAT I THROW AT THIS BLOG.

So, a big part of the original design of this space was to give images a prime spot and none gets more emphasis than the post header so I wanted to do something around that. Namely, given I try to use photographs for the headers and they, usually, carry a lot of color, I wanted to modify the look of the post page based on the colors present in the picture, so each post would have it’s own visual identity based on the header image I used.

Fine, we get it, let’s get to the details

Alright alright, so, details then. This blog is built using Jekyll, so it uses Ruby and that’s what I’m going to work with. My first goal was to have something look at an image and give me a given number of colors that show the most in that image. While I could obviously work on designing and building my own wheel - which would be great and amazing thank you very much - I decided to take a look at imagemagick and use the Ruby binding provided by rmagic - because let’s face it, I would build a square wheel anyway.

Now of course, imagemagick is capable of generating a color_histogram and that pretty much solves the issue for me, but because what I really really want is a feel for the most important colors in the image and not every single individual color in it, I use another great little method called quantize which does exactly what I want.

So with that, I iterate over all the posts that have header images and I do something like

def colormap(img_path)
  Magick::Image.read(img_path)
    .first
    .quantize(NUMBER_OF_COLORS, Magick::SRGBColorspace, Magick::RiemersmaDitherMethod)
    .color_histogram
    .keys
    .sort_by(&:intensity)
    .map do |color|
      # 8-bit rgb representation
      color.to_color(Magick::AllCompliance, false, 8)
    end
end

Roughly what’s happening here is:

1. I’m reading the image using the read command
2. I tell imagemagick to reduce the number of colors in the image to a given number - I picked 5 because much arbitrary opinion
3. With that reduced image I grab the color histogram - this gives the list of colors in the image
4. For the sake of predictably I sort the colors by the intensity value - darker to brighter
5. Finally I need to map color value to something I can use on the site, so I ask for the 8-bit version of the color and I get a direct hexadecimal value - great

Update (2020-05-05)

Now’s a good time to update this, recently I’ve scaled up considerably the generation of colormaps on the blog which made one thing very clear, rmagick is not a good option in terms of performance - at least in it’s default form. So bad in fact that the colormap generation would either exhaust the VM’s resources or - after I tweaked a bunch of imagemagick settings - take 5 minutes or more to generate all the colormaps.

Anyway, I looked at doing everything from libvips - as part of the updates I did - but I couldn’t find an obvious path to do that so I stuck to imagemagick but I now call it via a mogrified command using MiniMagick. The updated code looks like this now

class Colormap
  NUMBER_OF_COLORS = 5

  def initialize(path, number_of_colors = NUMBER_OF_COLORS)
    @image = MiniMagick::Image.open(path)
    @path  = path
    @number_of_colors = number_of_colors
  end

  def colors
    @image
      .run_command(
        'convert',
        @path,
        '-resize', '256x256',
        '-quantize', 'sRGB',
        '-format', '%c',
        '-colors', @number_of_colors,
        '-dither', 'Riemersma',
        '-depth', 8,
        'histogram:info:'
      )
      .split("\n")                               # One line per color
      .map { |v| /(\#[A-Z\d]*)/.match(v).to_s }  # Match anything that looks like #ACOLOR1
  end
end

Go with this instead, same results - scalling the image down also brings performance benefits .

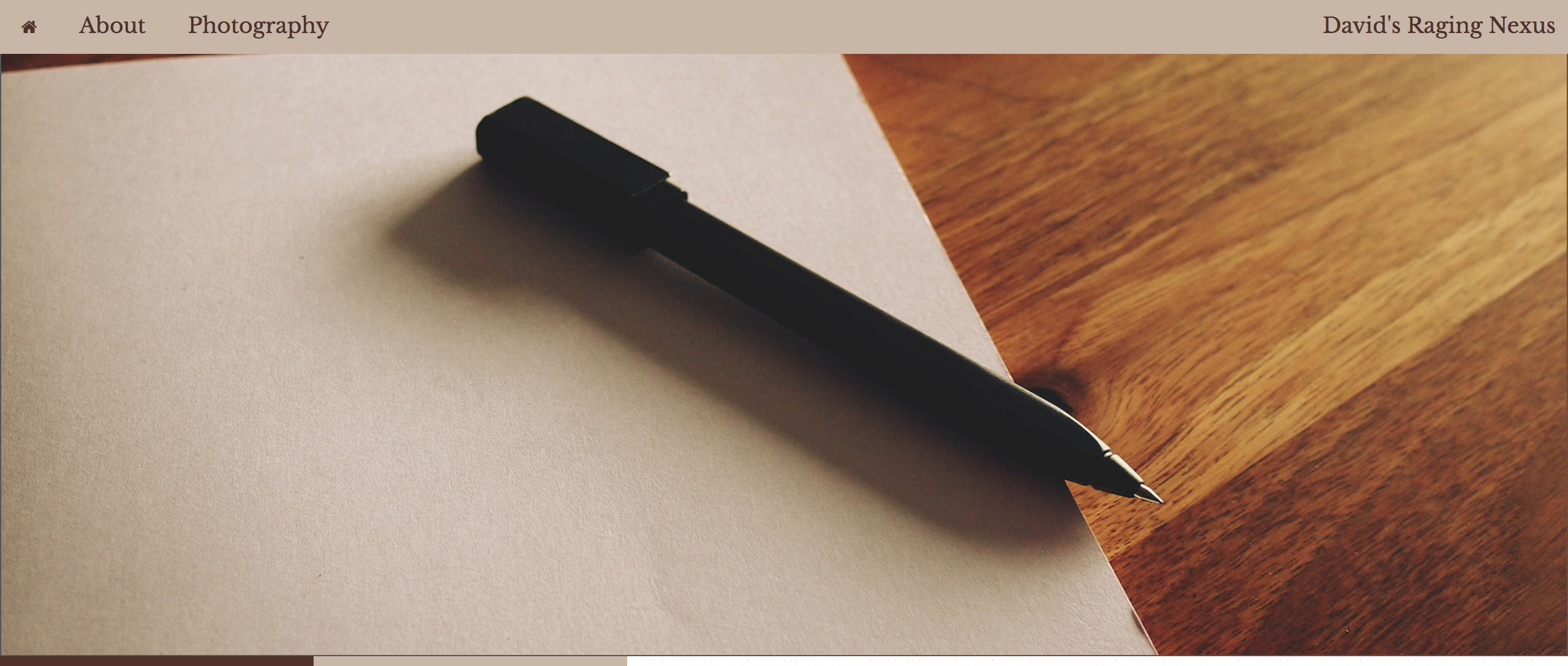

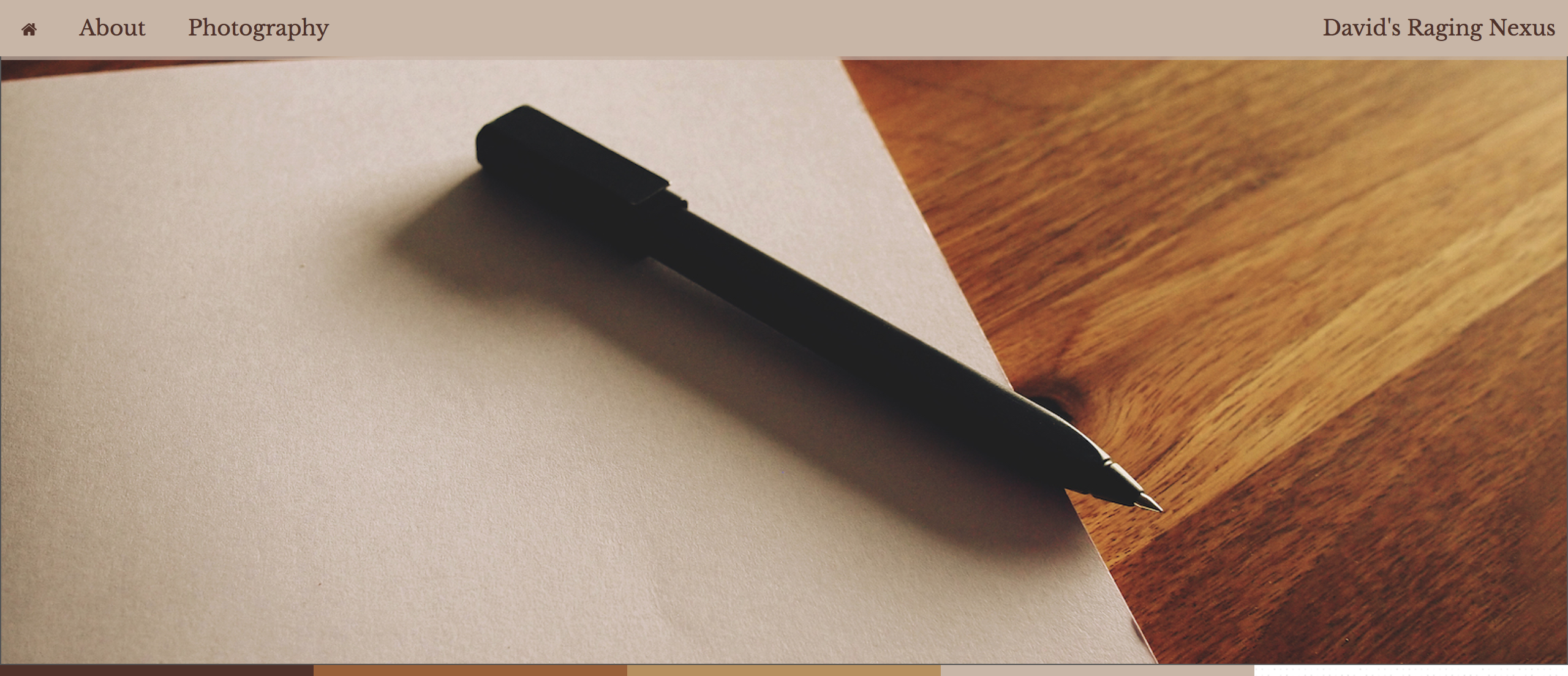

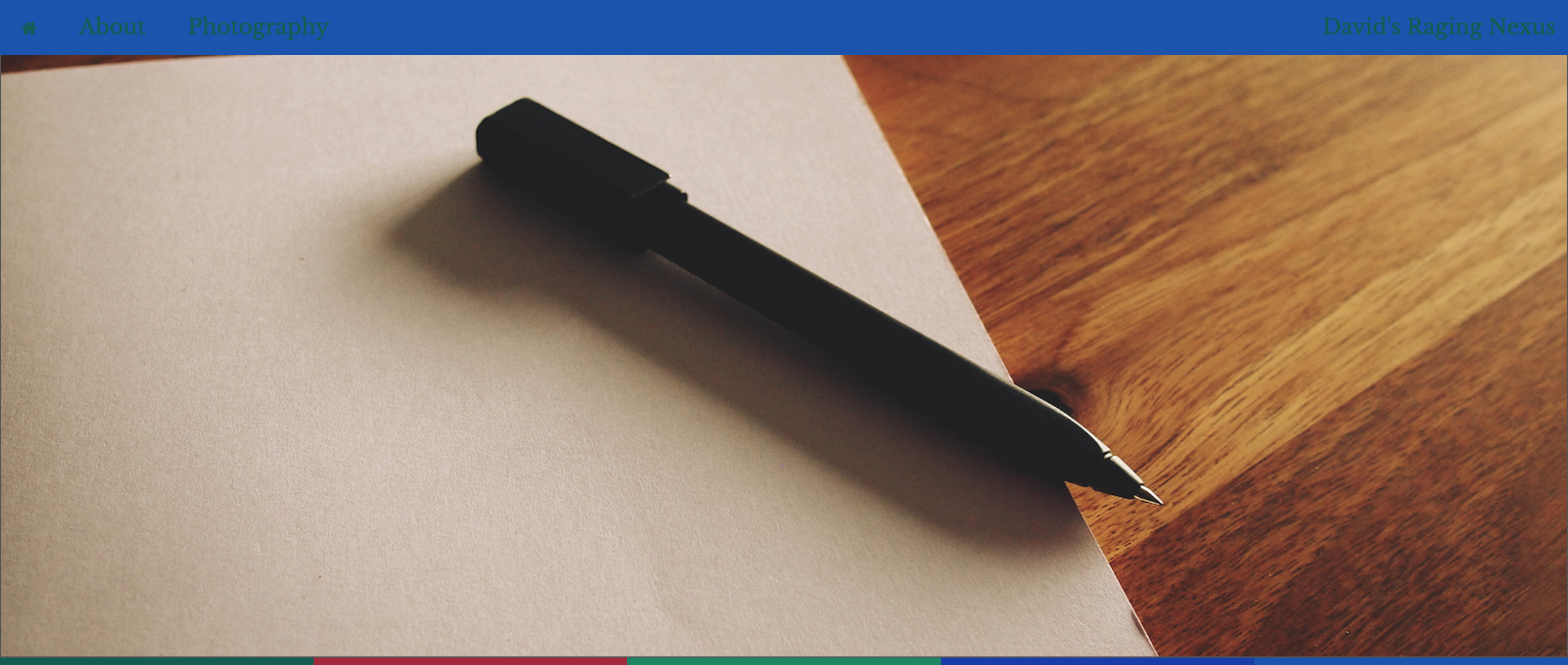

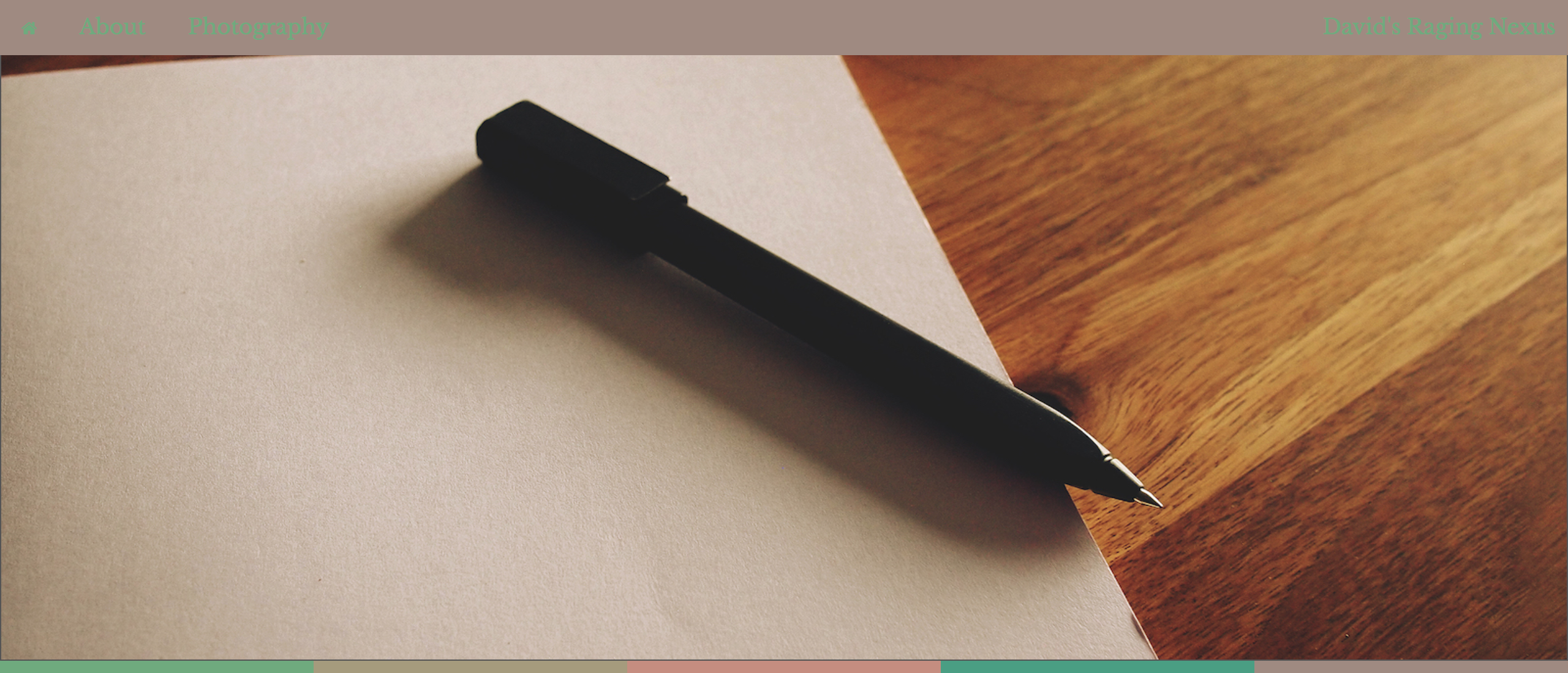

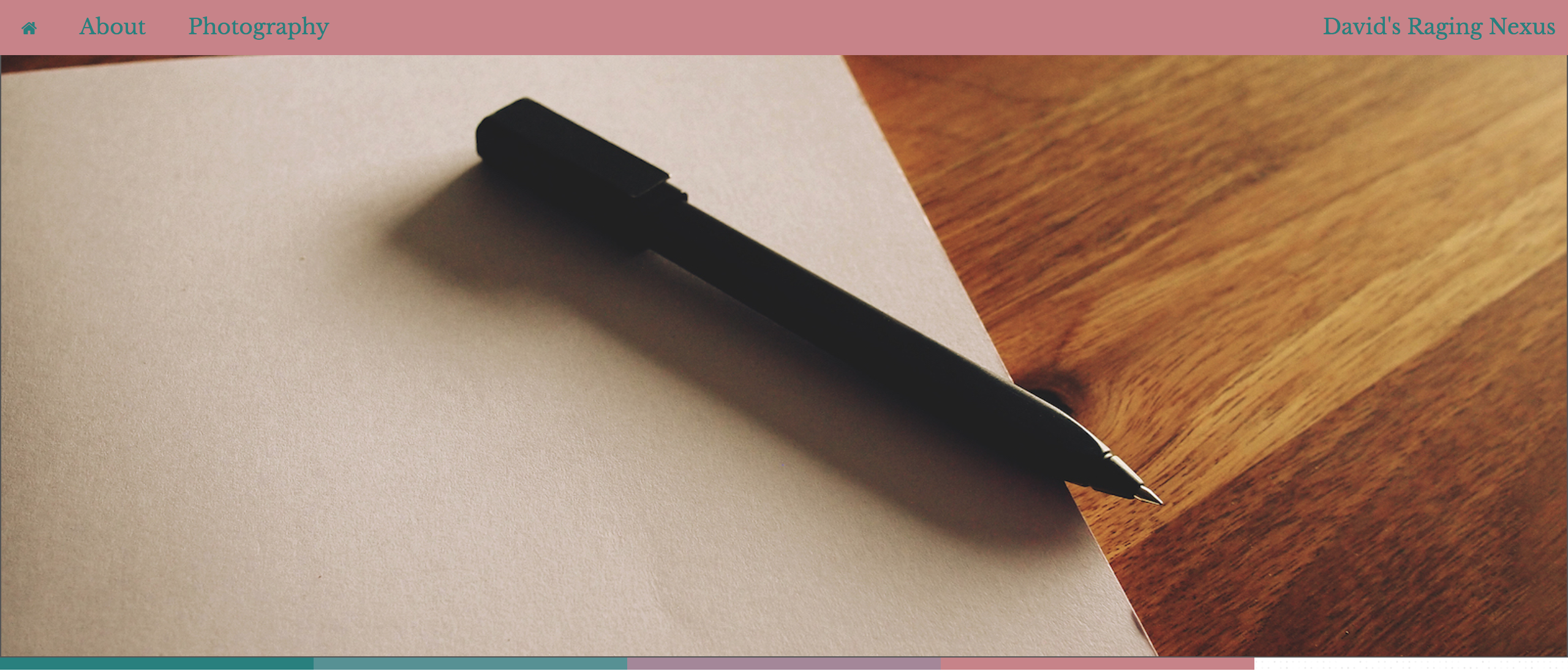

Now, there’s one important detail regarding the process of reducing the colors, which is the color space we want imagemagick to work in, which you can sort of get a feel for what it’s doing here. I played around with this for a while - in an impressive display of color theory ignorance - and I ended up going back to the RGB colorspace as that seem to give me the best results. Here’s how the experiments went:

And then ?

So with this I can now inject a list of colors onto each post. With these I do two things:

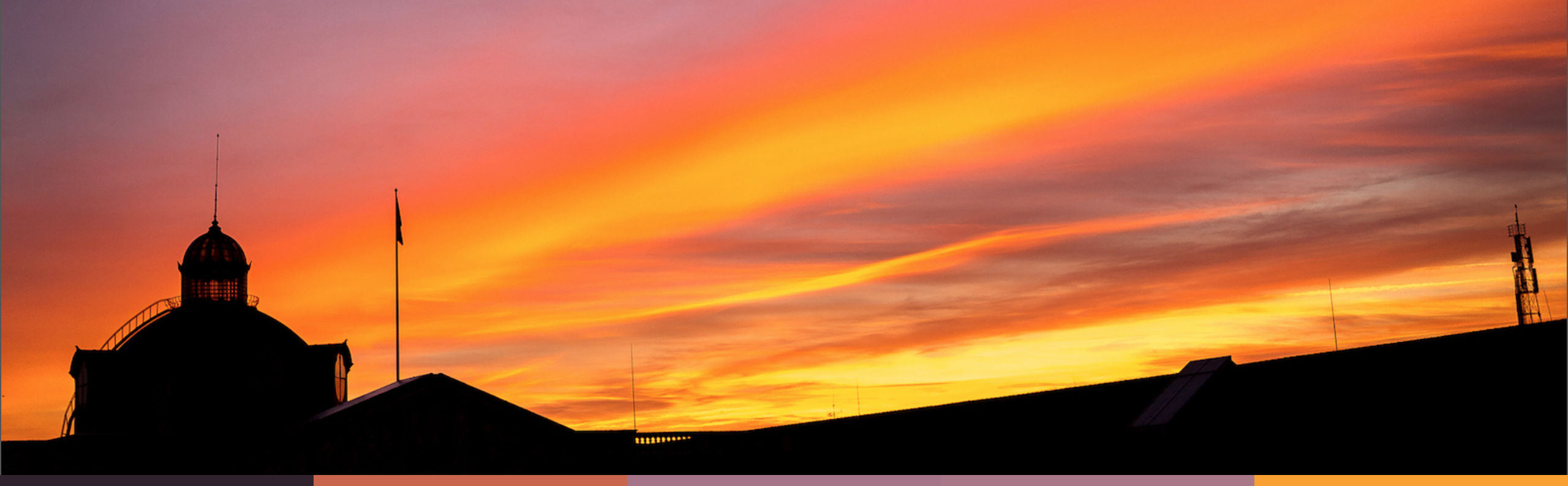

1. I added a color bar at the bottom of the image header so I can see the results. This is the typical case of a debugging tool that was promoted to “this is what I wanted all along”

1. I change the colors of the navigation and the post title block to match the colors of the image. Namely I take the brightest and the darkest and that influences the color of the text and background. This also means that now I have to make sure I pick images with enough contrast for this to always work out well in terms of readability, but there’s nothing I don’t do to make it more difficult for me to do things #SelfSabotage101

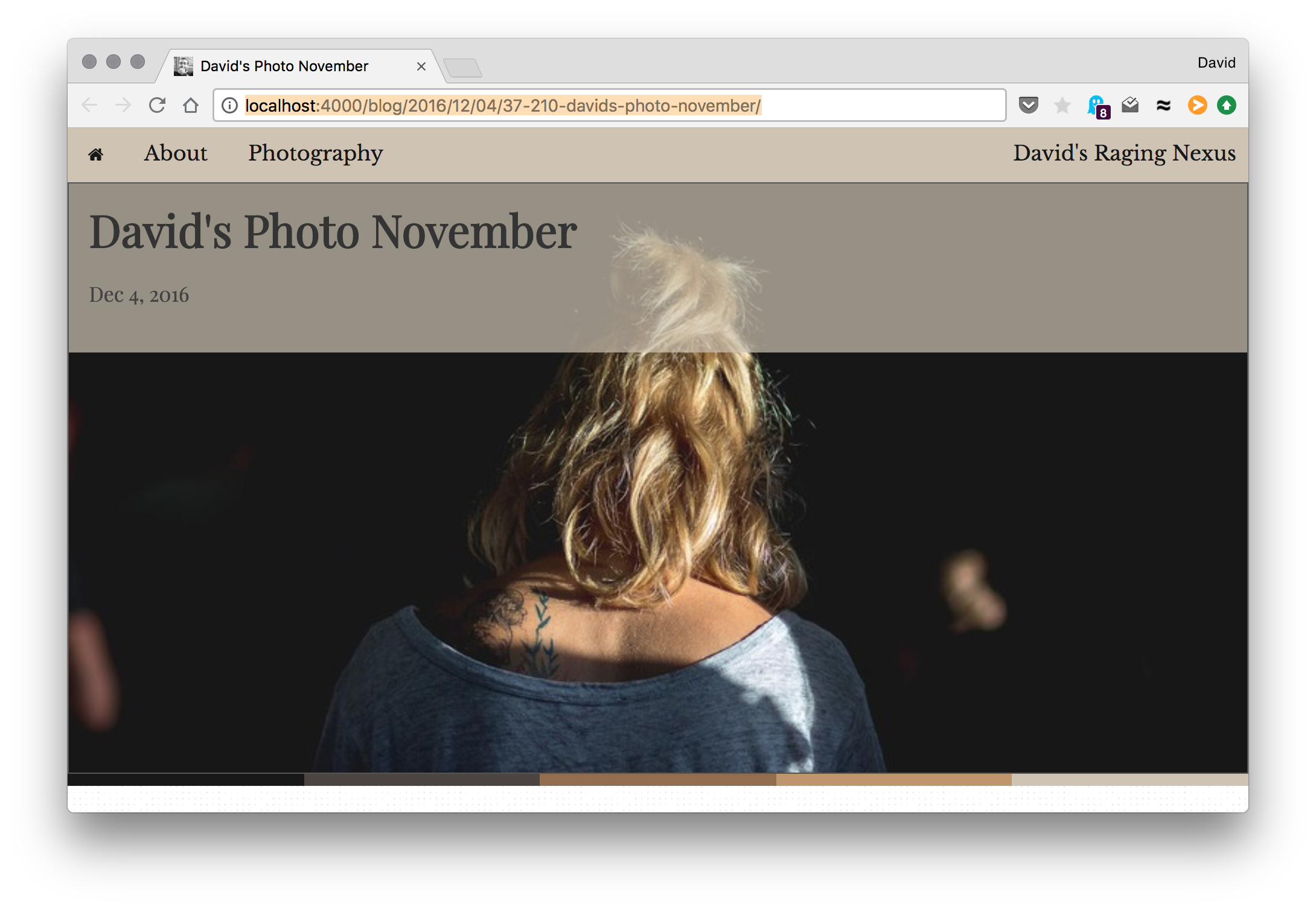

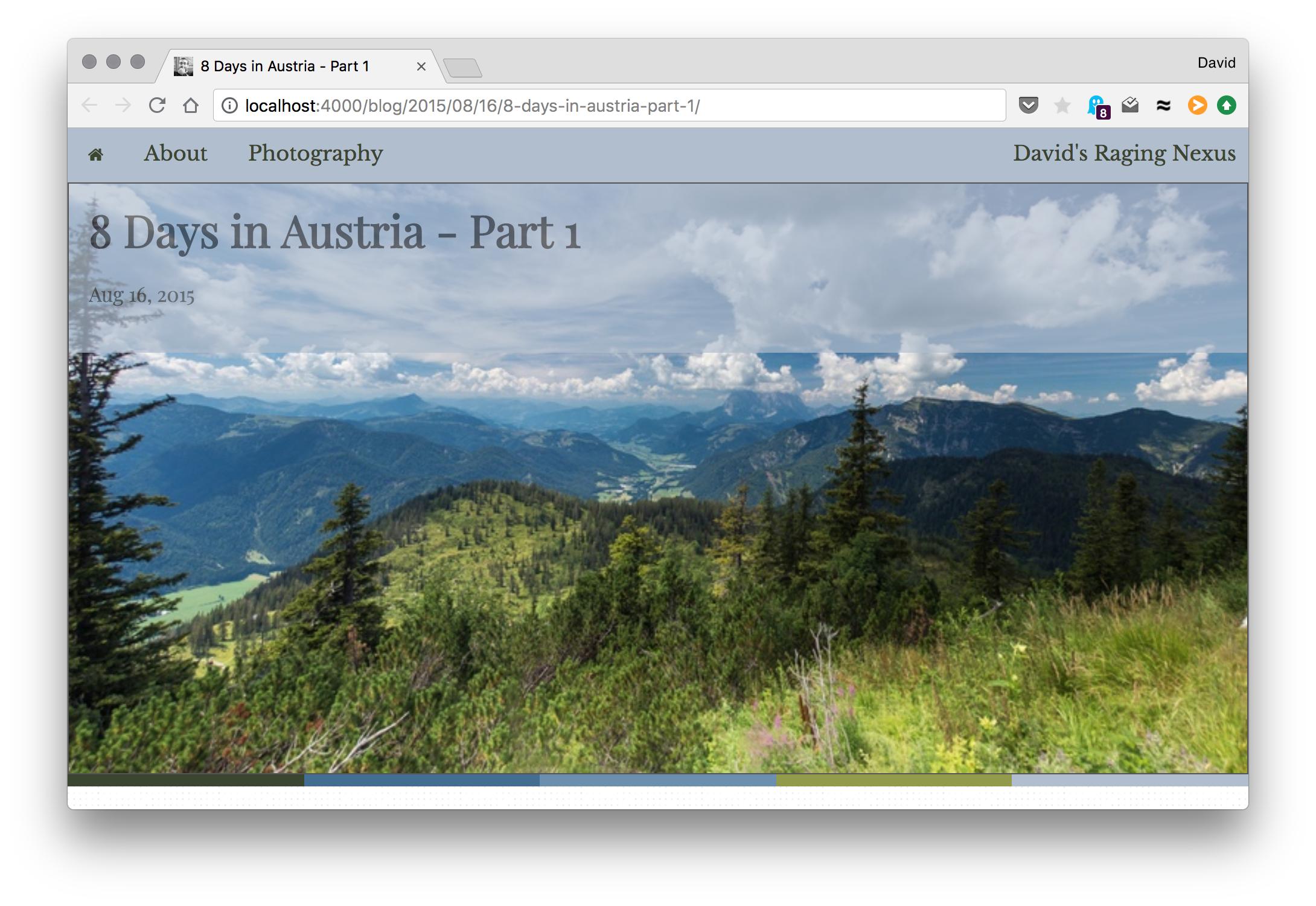

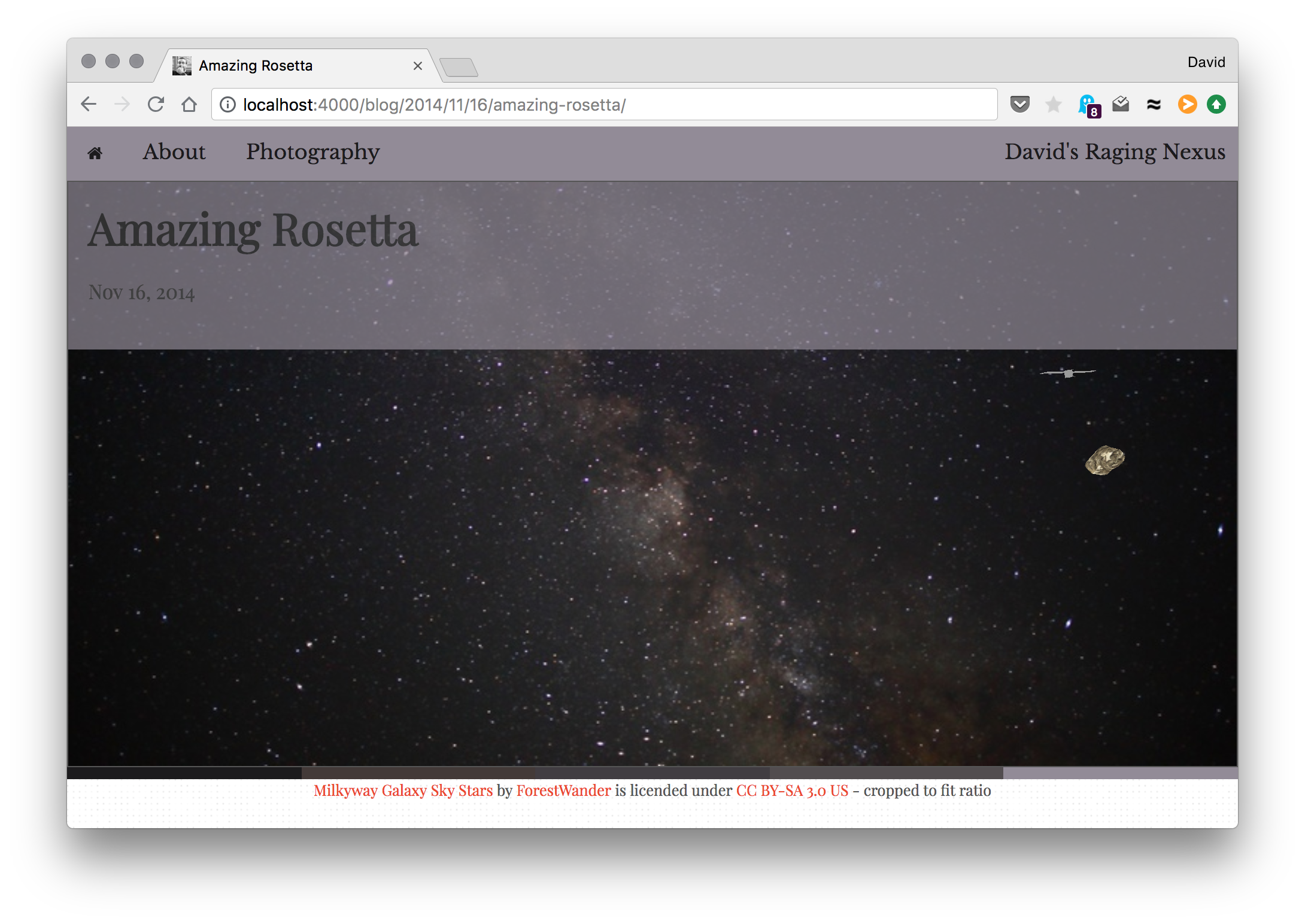

Here are a few examples:

Next up?

A MAJOR DESIGN OVERHAUL OF COURSE!!!!!!!
